Brand: BOJACK

Features:

• BOJACK 50 uf MFD 370 V/450 VAC Round Run Start Capacitor
• Operating Temperature Range -40 ℃ to +70 ℃/ -104℉ to +158℉
• This Capacitor Will Run Compressor And Fan Motor
• Engineered For Safety 10 000 AFC Anti Explosion Pressure Switch
• Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion.

model number: BJ-CAP

Part Number: BJ-CAP

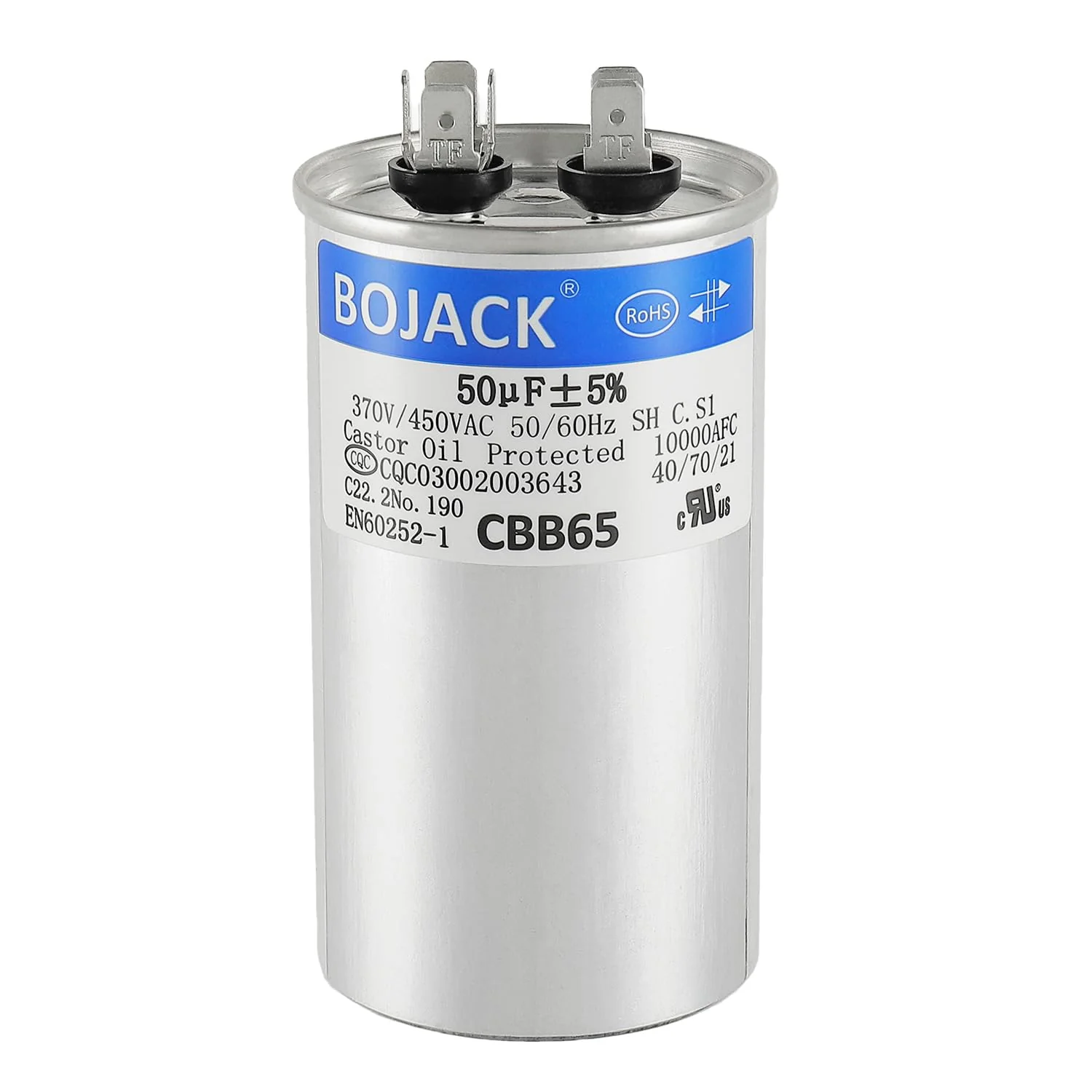

Details: BOJACK 50 uF 370V/450V CBB65 Round run start capacitor

Model: CBB65（Universal model）
Shell material: Case Material Aluminum, Cover Material Steel
Dielectric Material: metallized polypropylene film
Capacity: 50 uf
Tolerance: ±5%
Rated voltage: 370V/450V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC

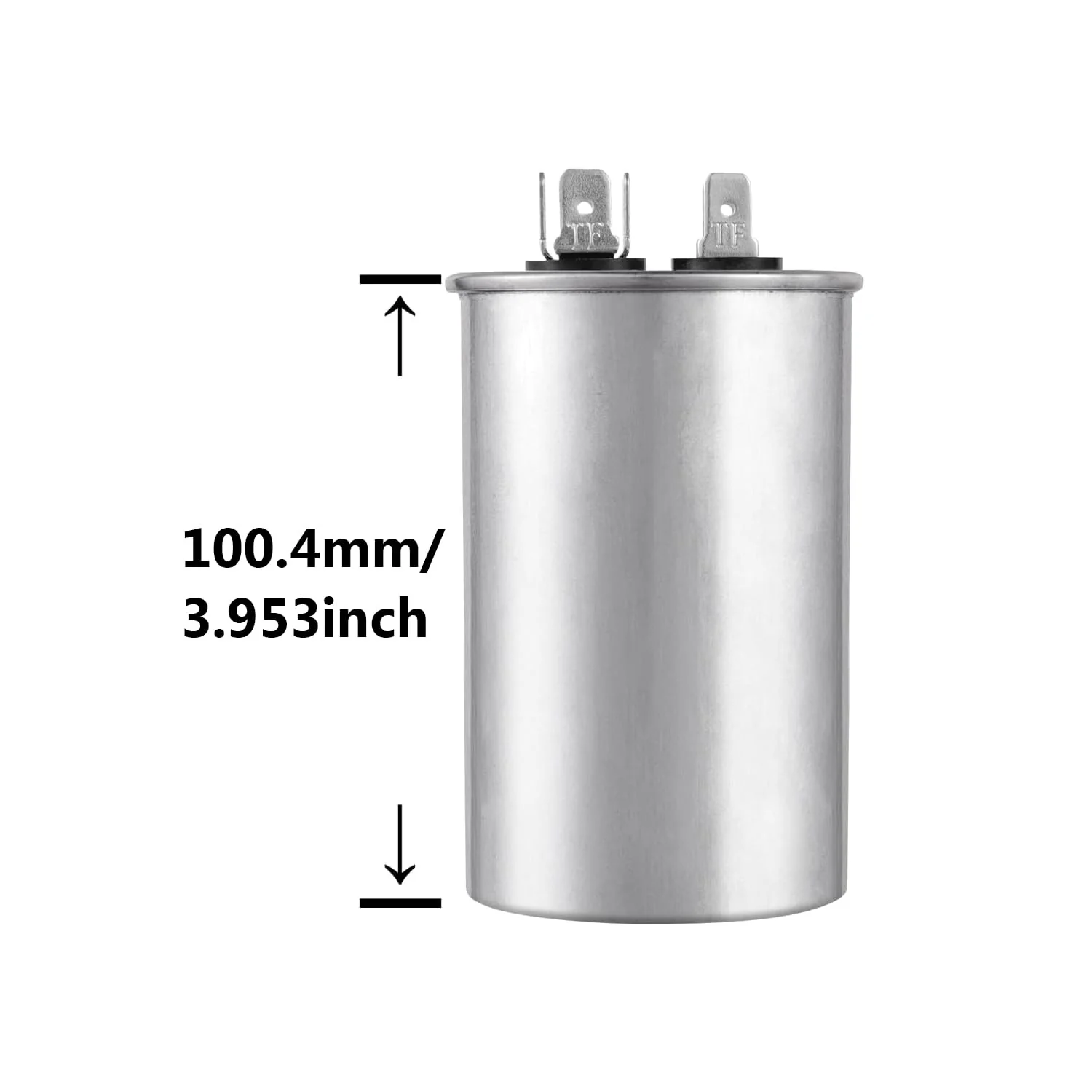

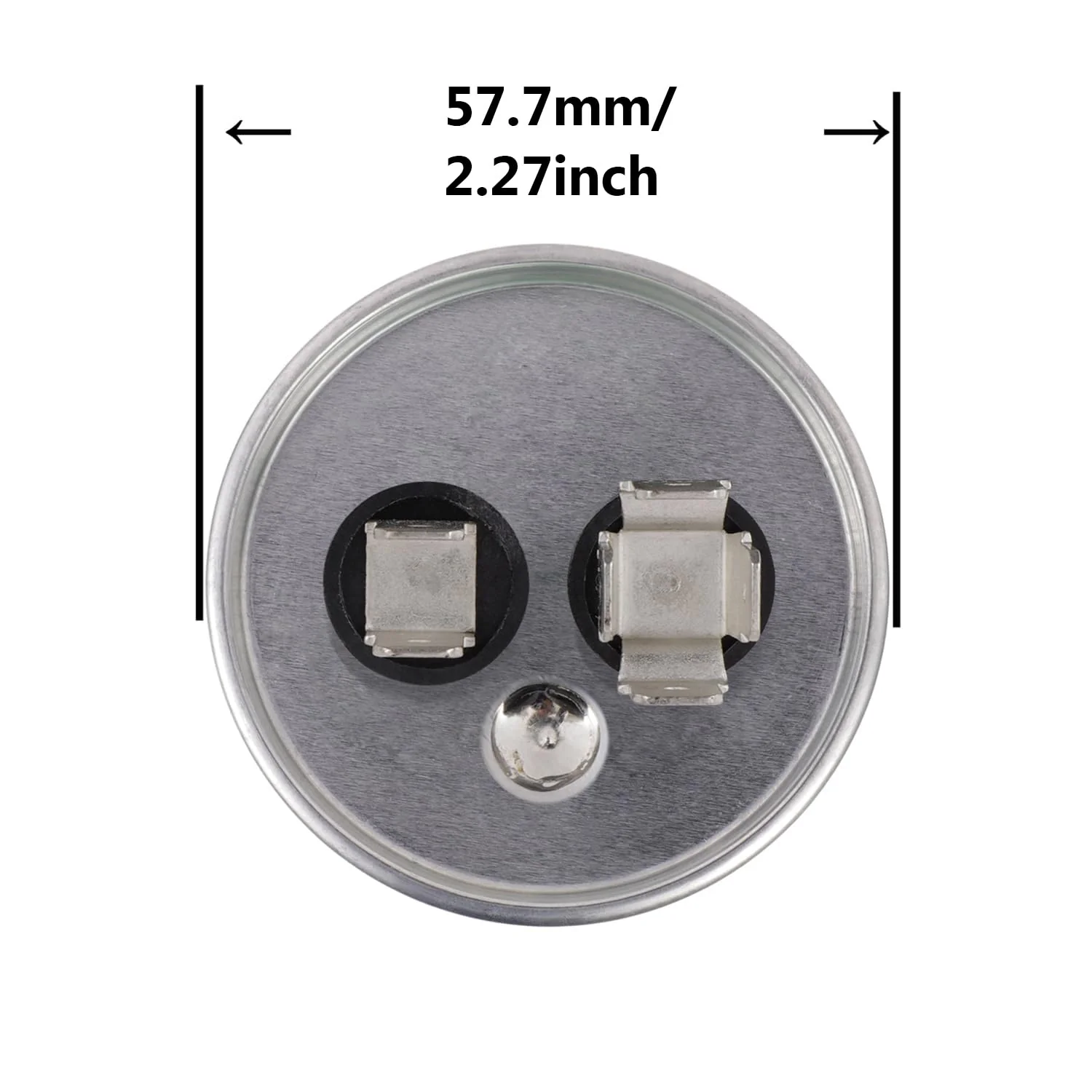

Capacitor dimension:Diameter<2.165 inch> ，Height <3.937 inch>
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉

This capacitor is used for a compressor motor and a fan motor
start-up and operation of AC motors with frequency of 50Hz/60Hz
such as Industrial Grade Replacement forCentral Air-Conditioners,
Heat Pumps, Condenser Fan Motors, and Compressors.It is small
in size, lightweight, heat resisting and anti-explosion.

Round run capacitor can be used to substitute Oval shape one with the
same MFD and volt specs.A 450 volt capacitor can be used in place
of a 370 volt, as it is build better, but the 370 can’t be used in place
of a 450 volt.

EAN: 0768894139441

Package Dimensions: 4.8 x 2.5 x 2.4 inches
