BOJACK 70+7.5 uF 70/7.5 MFD ±6% 370/440 V AC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight Cool or Heat Pump Air Conditioner
BOJACK 70+7.5 uF 70/7.5 MFD ±6% 370/440 V AC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight Cool or Heat Pump Air Conditioner
Brand: BOJACK
Features:
- BOJACK 75+5uF ±6% 370V/450V CBB65 Dual run circular start capacitor
- Capacitor dimension: Diameter 2.56 inch, Height 4.92 inch
- Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
- Safety rated: 10,000 AFC

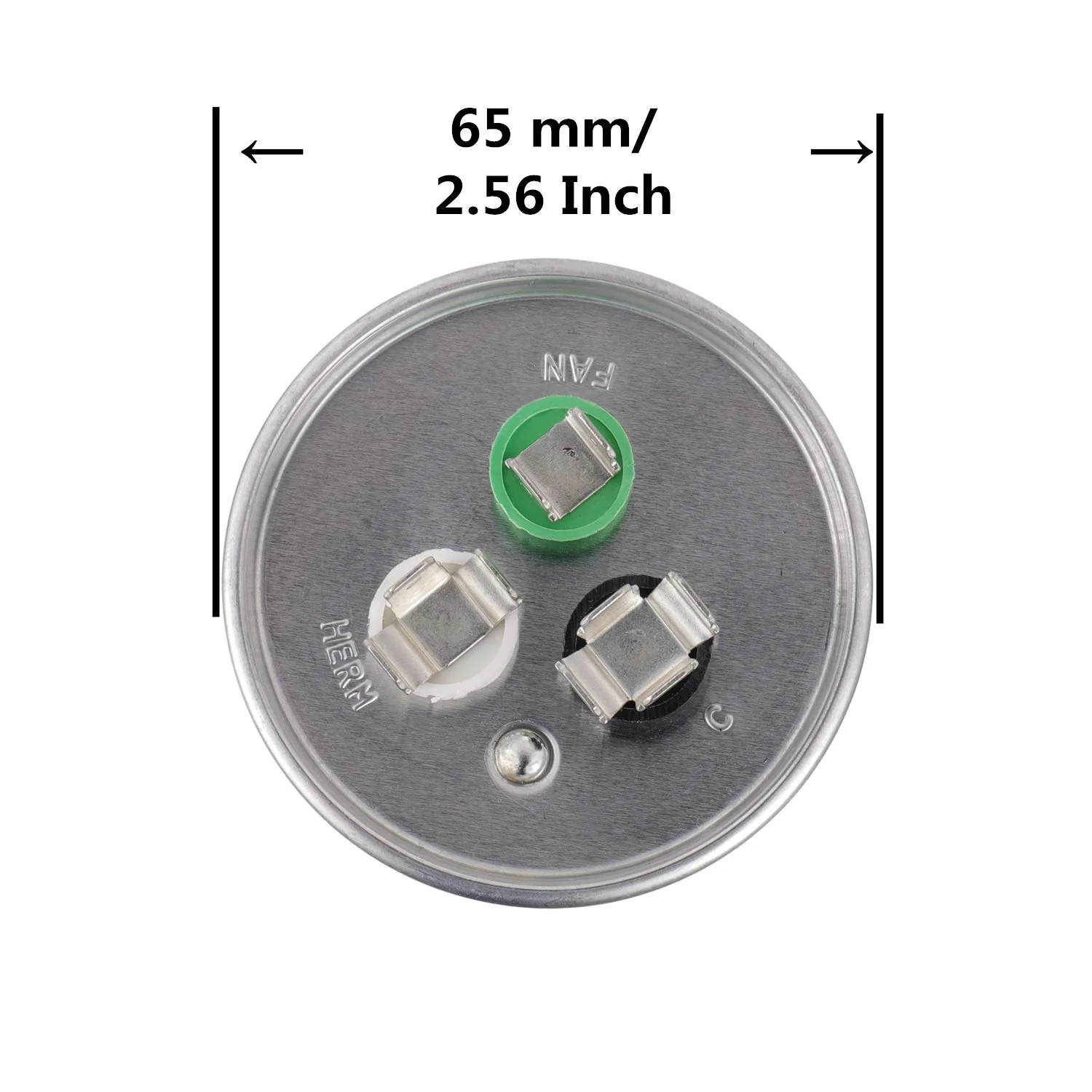

- Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
model number: BJ-CAP-7075
Part Number: BJ-CAP-7075
Details: BOJACK Dual run circular start capacitor
Model: CBB65（Universal model）
Shell material: metal
Dielectric Material: metallized polypropylene film
Capacity: 75+5uf
Tolerance: ±6%
Rated voltage: 370V/450 V AC
Frequency: 50 / 60Hz
Safety rated: 10,000 AFC
Operating temperature: -40 ℃ to +70℃/-104℉to+158℉
This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz
such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.
It is small in size, lightweight, heat resisting and anti-explosion.
EAN: 0762917044514
Package Dimensions: 5.7 x 2.8 x 2.7 inches
