Brand: ChillWaves

Color: Yellow

Features:

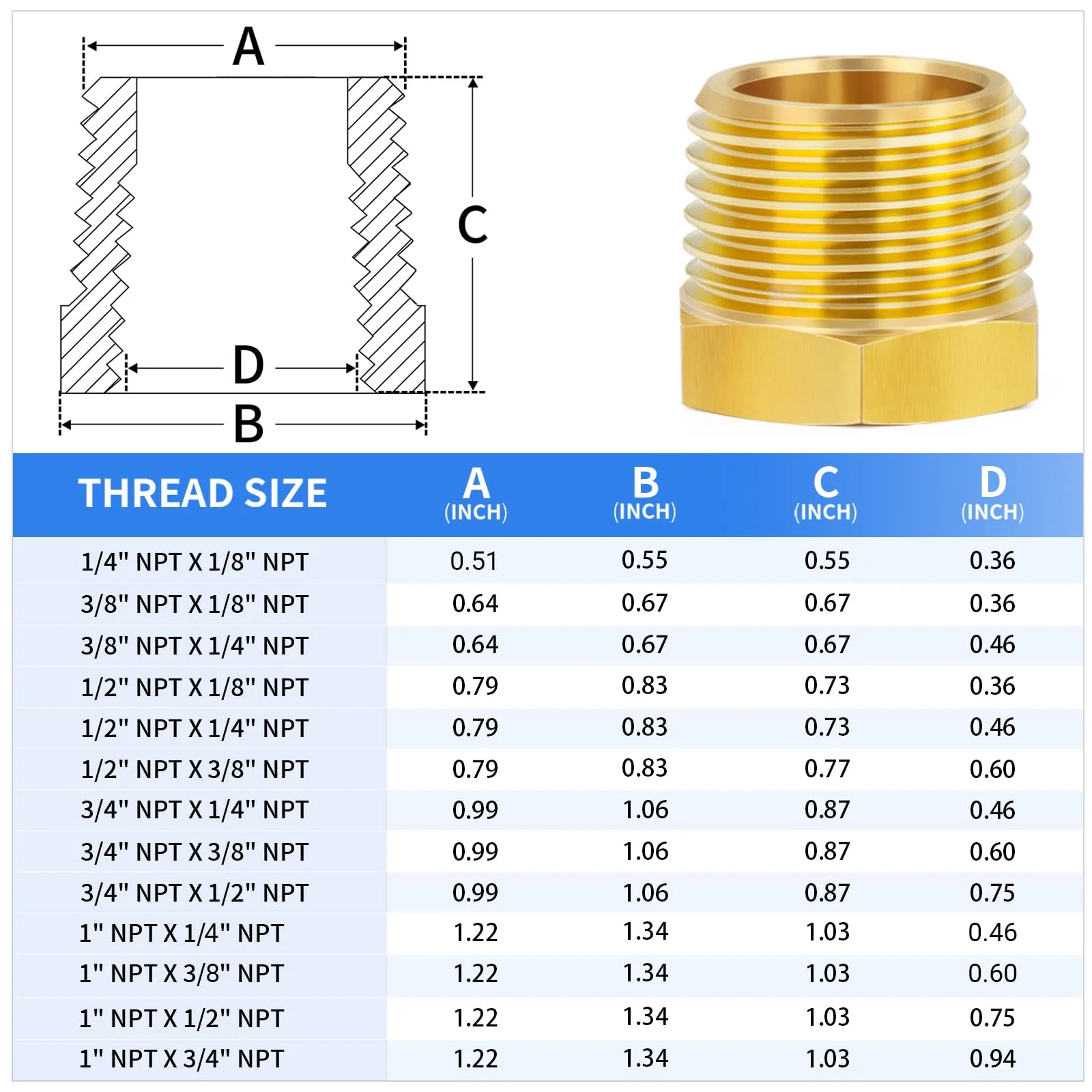

• SIZE - 1/2" NPT Male x 1/4" NPT Female Hex Bushing. Note, NPT thread is the nominal pipe size and does not represent the actual diameter, please refer to the dimension drawing for specific diameter.

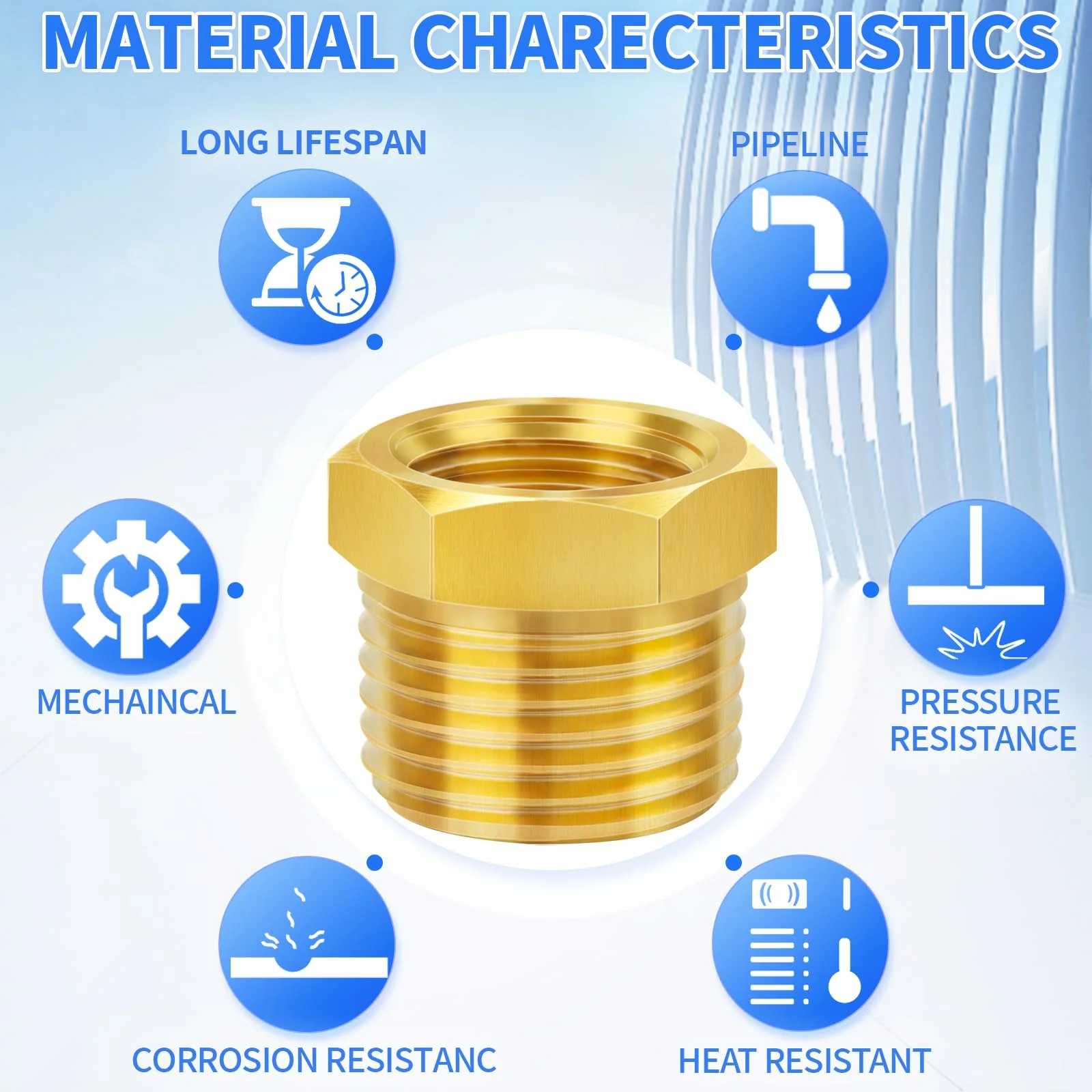

• MATERIAL - Made of high-quality brass, with strong wear and corrosion resistance, high compressive strength, durability, low magnetic permeability and high temperature ductility.

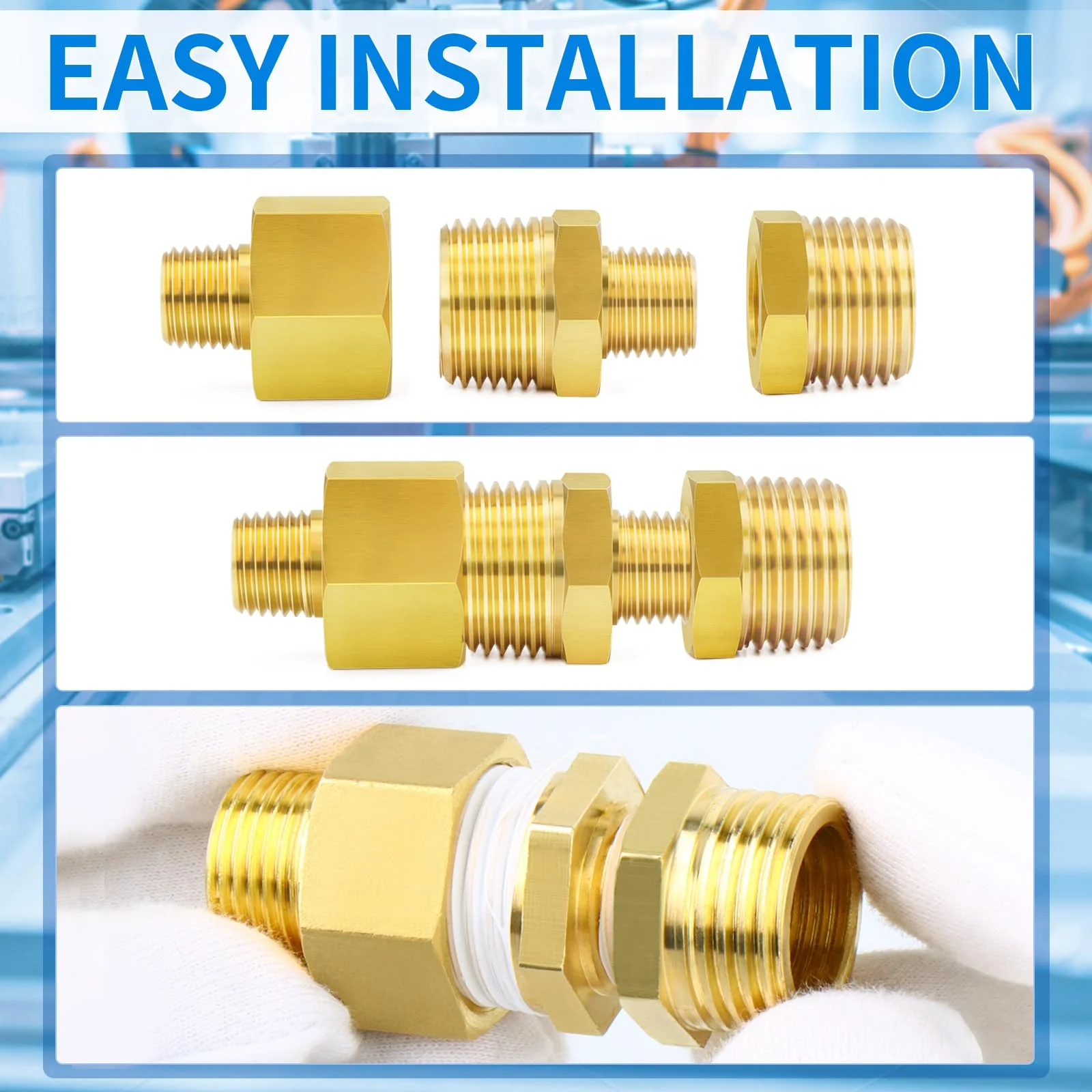

• USE - Used to connect female and male threaded pipes or fittings of different diameters.It is a fitting specially used in pipeline connection engineering.It is suitable for use with gases, water, oil, and non-corrosive liquids with in the specified pressure and temperature range.
• WORKING PRESSURE & TEMPERATURE - 1200PSI maximum working pressure, temperature range -65°F to +250°F (-53°C to +121°C)
• NOTE - NPT is a tapered pipe thread with a 60°taper and generally cannot be screwed to the end.

model number: CWJX003

Part Number: CWJX003

Package Dimensions: 4.0 x 2.4 x 0.9 inches
